A DPF clamp and gasket kit may look simple, yet it closes one of the most demanding joints in a heavy-duty truck aftertreatment system. Heat cycles, vibration, corrosion and repeated service all act on the connection. A kit that is almost correct can still create an exhaust leak, soot tracking, noisy operation or a repeat workshop visit. Professional buyers therefore need more than a diameter and a photograph. They need an application-based selection process that checks the OE reference, connection geometry, clamp profile, gasket construction and installation conditions together.
What a complete DPF clamp and gasket kit should contain
A practical kit normally combines the main retaining clamp with the sealing element required for the same joint. Depending on the truck and housing design, it may also include an inner ring, sleeve, spacer or additional clamp. The important point is compatibility: every component must match the same flange pair and installation position. Buying a clamp from one reference and a gasket from another can create a stack-height or profile mismatch even when the nominal diameter appears similar.
For distributors, complete kits reduce picking errors and make quotations easier to compare. Ask the supplier to state every included component, its reference, quantity and intended position. Product photos should show the actual kit rather than a generic clamp. If a repair requires two connections to be opened, confirm whether the quotation covers one joint or the whole DPF removal job.
Start with the OE number, then verify the application
An OE number is the strongest starting point because it links the request to an engineered application. It is not always the final answer. References can be superseded, shared across model families or associated with different production dates. Previous exhaust repairs may also have changed a housing, pipe or flange. A reliable cross-reference process therefore combines the OE number with truck make, model, model year, engine or emissions level, and the physical position of the joint.
When the number is unreadable, collect clear photographs of the clamp, gasket, flange faces and nearby sensors or brackets. Record the outside diameter at the connection, band width, V-profile or flat-band shape, bolt arrangement and gasket cross-section. This evidence gives the supplier enough information to challenge a doubtful match before the order ships.
Check clamp geometry and material
V-band, flat-band, collar and ID/OD style clamps do not create the same loading pattern. A V-band clamp converts bolt tension into radial force on mating flanges, so the included angle and flange shape must correspond. A flat band may retain an overlapping sleeve or cylindrical joint. The fastener length, nut style and bridge geometry also matter because they determine usable adjustment and clearance around the aftertreatment canister.
Material selection should reflect the exhaust environment, not only appearance. Stainless steel is common because it offers useful corrosion and heat resistance, but grade, thickness and forming quality influence durability. Inspect welds, band edges, thread quality and symmetry. A clamp that is distorted before installation is unlikely to load the joint evenly after tightening.
Match the gasket to the sealing faces

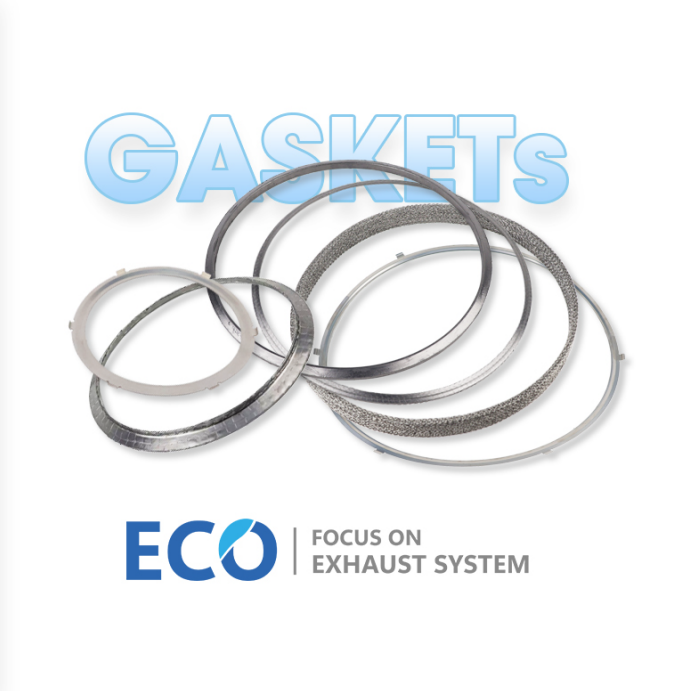

DPF gaskets may use formed metal, wire mesh, composite layers or hollow sealing constructions. Each design depends on controlled compression against specific mating surfaces. The correct gasket should sit concentrically, contact the intended sealing lands and tolerate the application’s temperature cycles. Reusing a compressed or heat-aged gasket can prevent the joint from developing uniform sealing pressure.
Before ordering, compare outer and inner diameter, thickness, cross-section and locating features. During installation, clean the sealing faces without removing material, inspect for dents or erosion, and replace parts that cannot provide a continuous contact path. A new gasket cannot compensate for a cracked flange or a clamp with the wrong profile.
Evaluate the supplier, packaging and technical support
For a distributor, fitment data is as important as the physical parts. A capable supplier should be able to explain cross-reference logic, provide dimensional confirmation, identify kit contents and flag applications that require additional validation. Clear labeling should show the supplier number, relevant OE references, quantity and batch or inspection information. This supports warehouse control and reduces mis-picks.
Packaging must keep the clamp round and protect gasket edges during export transport. Thin cartons, loose stacking or heavy parts resting directly on sealing rings can cause damage before installation. Ask how samples, small orders and pallet quantities are packed. A slightly lower unit price does not offset returns, emergency freight or workshop downtime caused by incomplete or deformed kits.
Practical workshop and purchasing workflow
- Record truck make, model, year and emissions level.
- Capture every readable OE or aftermarket reference.
- Photograph the joint, clamp profile, gasket and nearby hardware.
- Measure the connection diameter, band width and gasket cross-section.
- Confirm the kit contents and quantity per repair.
- Follow the vehicle or component maker’s installation procedure.
Use the workflow as a controlled information handoff. The workshop records the vehicle, joint and physical evidence; purchasing preserves the references and requested quantity; the supplier confirms the application and included components; and the installer reports the result. That closed loop is more reliable than a one-line request or an image without context.
For fleet and distributor programs, retain sample approvals, incoming inspection results, packaging observations and fitment feedback by supplier number. This record helps distinguish a true product issue from an application-data error, shipping damage or installation condition. It also creates better evidence for future sourcing decisions.
| Selection point | What to verify | Risk if ignored |
|---|---|---|
| OE and application | Model family, year, engine, emissions level | Wrong supersession or production variant |
| Clamp | Profile, diameter, band width, fastener | Uneven loading or insufficient adjustment |
| Gasket | Cross-section, dimensions, material | Leak despite a new clamp |
| Packaging | Shape protection and labels | Transit damage or warehouse errors |
| Support | Cross-reference and dimensional evidence | Higher return and downtime risk |
Quality-control questions before approval
Before approving any dpf clamp gasket kit, ask whether the reference is supported by a current application record, whether the measured geometry agrees with the part on the vehicle, and whether the sealing components are supplied as a compatible set. Confirm how the product is identified, protected in transit and linked to a production or inspection batch.
For a first order, use a sample or controlled quantity when practical. Inspect labeling, roundness, gasket condition, threads, welds and dimensions on arrival. Record the installation result instead of treating the absence of a complaint as validation. For repeat orders, monitor changes in appearance, packaging or supplier documentation and request an explanation before accepting an unannounced revision.
Installation feedback should be specific: vehicle details, OE number, connection position, photos before and after assembly, and the exact issue observed. Statements such as does not fit are difficult to investigate. Structured evidence allows the buyer and supplier to determine whether the problem concerns cross-reference data, manufacturing variation, an altered vehicle or workshop procedure.
What this means for distributors, fleets and workshops
For parts distributors
A distributor turning dpf clamp gasket kit into a repeatable product line needs more than a supplier price list. Build a master record that separates direct OE interchange, application reference and kit relationship. Attach dimensional drawings, actual product photos, carton labels and revision dates. Train sales staff to request vehicle and joint information before promising fitment. When a return occurs, quarantine the item and compare it with the approved sample rather than placing it directly back into stock. This process protects catalog credibility, reduces freight and creates evidence for a constructive supplier investigation.
For fleet maintenance teams
Fleet managers should connect parts decisions with vehicle history. Record the installed reference, mileage or operating hours, reason for removal, observed soot or damage, diagnostic information and the technician’s findings. If several vehicles show the same pattern, compare duty cycle, previous repairs and component batches before assuming one universal cause. Standardized records make it easier to decide whether to change a maintenance practice, review a supplier reference or investigate an engine and aftertreatment condition. They also help procurement measure the cost of downtime and repeat labor, not merely the purchase price.
For workshops and installers
Workshop quality begins before the old part is removed. Photograph the assembly, mark component orientation when useful, and protect sensors and lines. After removal, keep the clamp, gasket and identification labels together until the replacement is confirmed. Inspect the complete joint under good lighting and record measurements from clearly defined points. During reassembly, support the exhaust, keep sealing surfaces clean and follow the current application procedure. The final job record should state what was replaced, which specification source was used and how the repair was checked after installation.
For technical and purchasing communication
The most efficient enquiry is concise but complete. Put the target part and quantity in the subject line, then provide the truck make, model, production information, engine or emissions level, OE references, joint position, photographs and dimensions. State whether the request is for a sample, urgent repair or stocking program. This allows the supplier to respond with a specific product, kit contents, fitment questions, lead time and packaging plan. It also reduces the risk that assumptions become undocumented catalog claims.
Frequently asked questions
Can I order by clamp diameter alone?
No. Diameter is useful, but the flange profile, band geometry, fastener range and gasket design also need to match.
Should a DPF gasket be included with every clamp?
Not every product is sold as a kit. Confirm the bill of materials and order the matched sealing component whenever the joint is opened.
Is an aftermarket kit acceptable for fleet use?
A well-made aftermarket kit can be suitable when fitment, materials, quality checks and installation requirements are properly validated.
Why can two kits with the same OE reference look different?
OE references can be superseded or catalog data can be incomplete. Check production date, physical geometry and supplier evidence before deciding.
What information speeds up a quotation?
Send the OE number, truck details, photos, dimensions, quantity and destination country in one request.
Related ECO product and support pages
Conclusion
The best DPF clamp and gasket kit is not simply the closest-looking set. It is the set supported by an auditable chain of application data, physical confirmation and installation guidance. That discipline helps workshops achieve a leak-tight repair and helps distributors reduce avoidable returns.
If you need a fitment check, send ECO the truck make, model, year, emissions level, OE number, clear product photographs, measured dimensions, required quantity and destination. Our DPF sourcing and technical services team can review the information before quotation.
